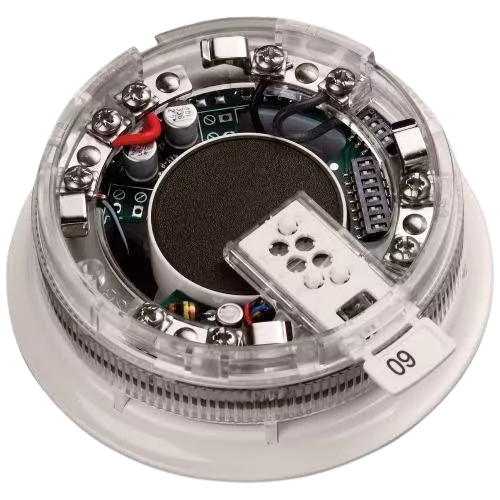

Apollo XP95A Sounder Visual Indicator Base – Red LED (Part No. 45681-526USA)

The Apollo XP95A Sounder Visual Indicator Base – Red LED (45681-526USA) combines a loop-powered sounder, red visual beacon, and intelligent detector mounting base into a single device. Designed to provide audible and visual fire alarm notification, it is ideal for enclosed areas where clear alarm indication is required.

The 45681-526USA can operate with a compatible detector fitted or with a cap installed, allowing it to function as a stand-alone alarm device. This flexibility enables designers to use the unit as part of a complete fire detection system or as a dedicated notification device where required.

In addition, the device supports both individual and group addressing, allowing greater flexibility during system design and commissioning. The integrated sounder and beacon can also synchronise alarm tones and flash patterns across the loop, creating a consistent and easily recognisable alarm signal throughout the protected area.

Key Features

• Combined sounder, beacon, and mounting base
• Red LED visual indicator
• Loop powered
• Compatible with Apollo XP95 systems
• Can operate with or without a detector fitted
• XPERT card addressing
• Two selectable volume ranges:
  • 55-75dB(A)
  • 75-91dB(A)
• Beacon flash rate of once per second
• Synchronised alert and evacuation tones
• Synchronised beacon flashing
• Individual and group addressing
• Unique acoustic self-test
• Unique beacon self-test

Typical Applications

The Apollo 45681-526USA is suitable for:

• Offices
• Commercial buildings
• Hotels
• Retail premises
• Hospitals
• Educational facilities
• Residential developments
• Enclosed indoor areas requiring audible and visual alarm notification
