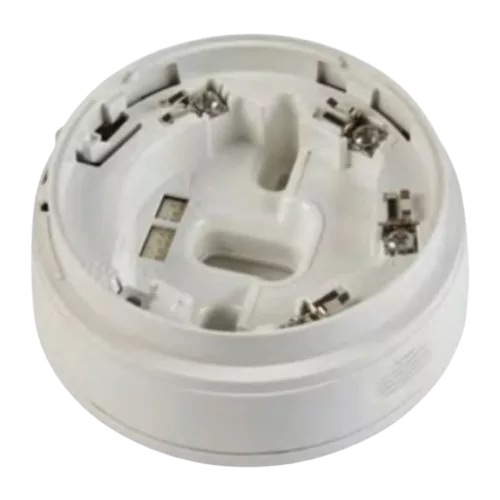

Tyco P80SB Addressable Base Sounder (576.080.002)
The Tyco P80SB (576.080.002) is an addressable base sounder designed for use with ZETTLER addressable detectors. By combining a detector base and fire alarm sounder into a single unit, it provides a compact and efficient solution that reduces installation time and wiring requirements.
The sounder has its own address on the fire alarm loop, allowing the control panel to monitor and control it singly of the detector installed on the base. Power and control both the sounder and detector through a single two wire loop, eliminating the need for additional wiring and helping to reduce installation costs.
In addition, the integrated visual indicator (VID) provides a clear visual alarm signal, while advanced monitoring and self test functions help ensure reliable long-term performance.
Key Features
- Addressable sounder base for ZETTLER addressable detectors
- Combines detector, sounder, and visual indicator in one device
- No additional wiring required
- Independent addressable control of the sounder and beacon
- Built-in line isolator for improved system flexibility
- Reflective Sound Monitoring (RSM)
- Automatic self test
- Electronically monitored visual indicator
- 15 different alarm tones
- Realistic conventional bell tone option
- 4 volume options
- 2 flash rates
- Separate tones can be configured for fire alarms and class change signals
- Loop-wide synchronization of sounders and visual indicators
- Detector locking pin included to prevent unauthorized removal
- Compact and tactful design
- Replaces legacy LPSB3000 and LPAV3000 units
