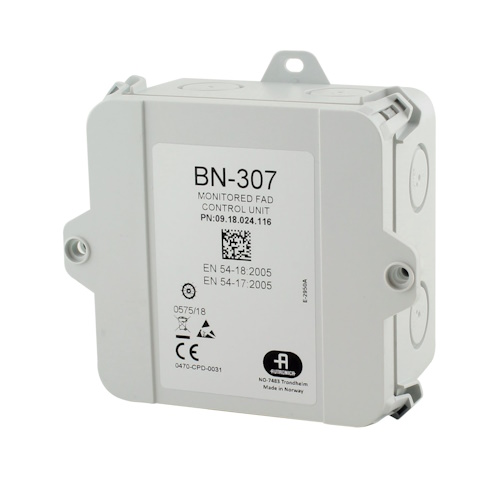

Autronica BN-307 Monitored Fire Alarm Device Control Unit

The Autronica BN-307 Monitored Fire Alarm Device Control Unit has been designed for use with Autronica’s fire detection systems, AutroSafe and Autroprime. The Autronica BN-307 external units require separate power sources. There is no current limiting/protection in the unit; this must be supported by the power source (can not be powered by the AutroSafe detector loop).

Features
Interactive
1 Fire Alarm Device (FAD) output
FAD circuit end- of -line monitoring
Short-circuit isolator of detection loop in each unit
Sound patterns are configurable via fire panel
Sound pattern synchronization
Automatic addressing
Proven technology
Wall mounted
External power supply monitoring
1 A 30 VDC switching capability
Designed to meet the requirement of the major maritime classification societies
Approved according to EN 54-17 and EN 54-18.
