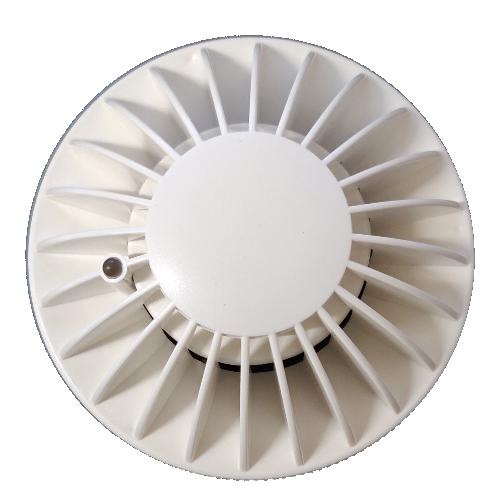

The Autronica 116-BDH-200 is a point heat detector, designed to detect the rise in environment temperature that is caused by a fire.
The Autronica 116-BDH-200 is a point heat detector, designed to detect the rise in environment temperature that is caused by a fire. The BDH-200 is used with the Autronica Autrosafe and Autroprime interactive fire alarm systems.
The Autronica BDH-200 Heat Detector is used in areas where the environment is likely to produce false and unwanted alarms from smoke detectors, such as:
Kitchens
Galleys
Bathrooms
Boiler rooms
Workshops, etc.
| Weight | 1 kg |
|---|---|
| Weight |
~140 g |
| Material |
PC/ABS |
| Color |
Grey |
| Sensitivity |
According to EN-54/5 |
| Working voltage |
10-27 VDC |
| Alarm Current |
Max 6 mA |
| IP Rating |
IP44D |
| Temperature range |
-20°C to +80°C |
| Relative Humidity |
0 to 95% RH |
| System/Series |
Autroprime ,AutroSafe |
