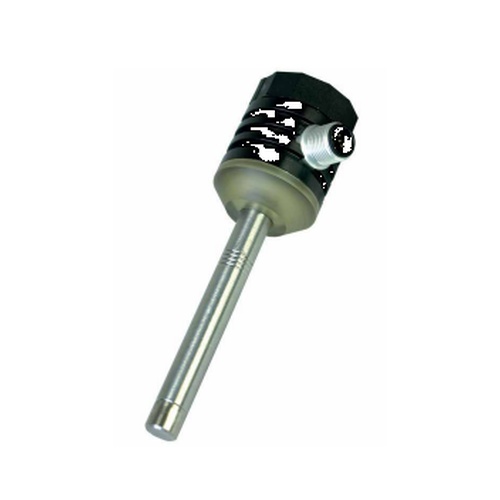

Noris TAV131 Temperature Sensor

The Noris TAV131 Temperature sensors are stick-in sensors with a stainless-steel sensor tube (nickel-plated probe tip) and a Pt100 measuring element with 2-wire or 3-wire technology.

The Noris TAV131 Temperature sensors are attached in a protection tube. Depending on the Euro M12 x 1 connector, the TAV131 have a straight or side 90° cable outlet or, alternatively, a fixed connection cable. The integrated measurement amplifier provides depending on the measuring element the output signals: 4 … 20 mA, 0 … 20 mA, 0 … 10 VDC or 2 … 10 VDC.

Features
Compact and robust design up to protection class IP68
High accuracy, with integrated signal converter (standard industrial signals)
Available in various immersion depths
Over voltage and overload protection
In 2-wire or 3-wire version
Can be used universally; suitable for long line lengths
Measuring ranges can be customised.
