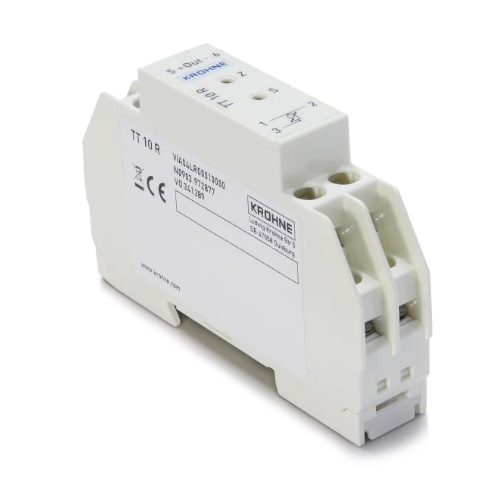

Krohne OPTITEMP TT 10 R Temperature Transmitter
The krohne OPTITEMP TT 10 R is an adjustable 2-wire rail-mounted temperature transmitter.
The krohne OPTITEMP TT 10 R is an adjustable 2-wire rail-mounted temperature transmitter. It works with Pt100 RTD elements or with thermocouple (TC) element types J, L, T, K and N. The temperature transmitter features high reliability and shows excellent performance in many industrial standard applications. It provides a current output (4…20 mA). The OPTITEMP TT 10 R can be configured using solder pads and allows easy wiring through the large centre hole. Zero point and span adjustment can be done by potentiometers. The temperature transmitter is designed to be mounted on a DIN rail. A dedicated head-mounted version is available with the OPTITEMP TT 10 C.
Features
Cost-effective analogue device
Adjustable with solder pads and potentiometers
On request: configured according to customer’s requirements
With sensor break monitoring Polarity protected power supply
Designed for installation on a rail (in accordance with DIN EN 60715)
