Krohne OPTITEMP TT 10 C Temperature Transmitter

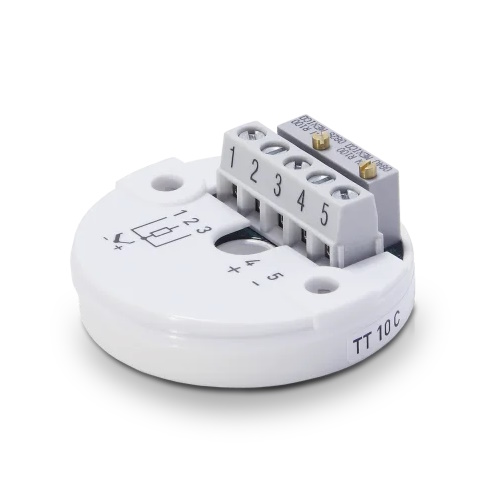

The Krohne OPTITEMP TT 10 C is an adjustable 2-wire head-mounted temperature transmitter. It works with Pt100 RTD elements or with thermocouple (TC) element types J, L, T, K and N. The temperature transmitter features high reliability and shows excellent performance in many industrial standard applications. It provides a current output (4…20 mA). The OPTITEMP TT 10 C can be configured using solder pads and allows easy wiring through the large centre hole. Zero point and span adjustment can be done by potentiometers. The temperature transmitter is designed for installation in a “B connection head” or larger. As an alternative the OPTITEMP TT 10 C can also be mounted on a DIN rail using an optional rail mounting kit. A dedicated rail-mounted version for DIN rails is available with the OPTITEMP TT 10 R.

Features
Cost-effective analogue device
Adjustable with solder pads and potentiometers
On request: configured according to customer’s requirements
Easy wiring through large centre hole
Polarity protected power supply With moulded electronics for high protection
Suitable for connection head B or larger
Optional rail mounting kit for installation on a DIN rail (in accordance with DIN EN 60715)
Available as intrinsically safe: ATEX (zone 0, 1, 2)
