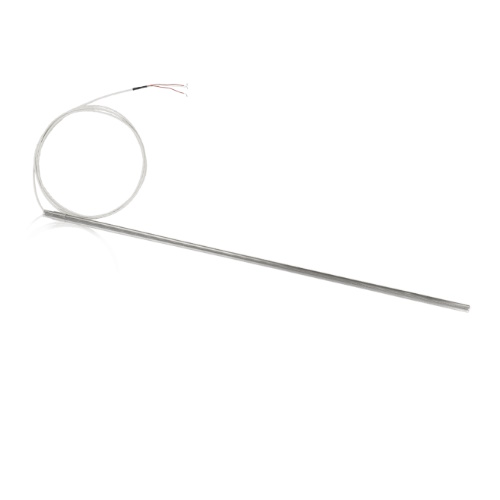

Krohne OPTITEMP TRA-W90 Resistance Sensor

The Krohne OPTITEMP TRA-W90 is a plug-in cable sensor (RTD) made of a flexible mineral insulated (MI) cable that can be easily cut and formed to fit into limited spaces.

The Krohne OPTITEMP TRA-W90 is a plug-in cable sensor (RTD) made of a flexible mineral insulated (MI) cable that can be easily cut and formed to fit into limited spaces. The cable sensor is particularly suitable for temperature measurement in applications where the ambient temperature exceeds the maximum allowable temperature of standard cable material. The OPTITEMP TRA-W-90 is available with PVC, silicone or PTFE connecting cable. It can be provided with free insulated flying wires for installation in applications where connection terminals already exist.

Features
Temperature measurement in applications with higher ambient temperature ranges
Flexible and hand formable MI cable sensor
Available with flying wires, single and double versions
Sheath material: Stainless steel (1.4404 / 316L)
Tolerance class A according to IEC 60751 as standard
Available with PVC, silicone or PTFE insulated connecting cable
Standard or customised lengths
Different connection heads available (IP54…IP68)
With optional temperature transmitter
