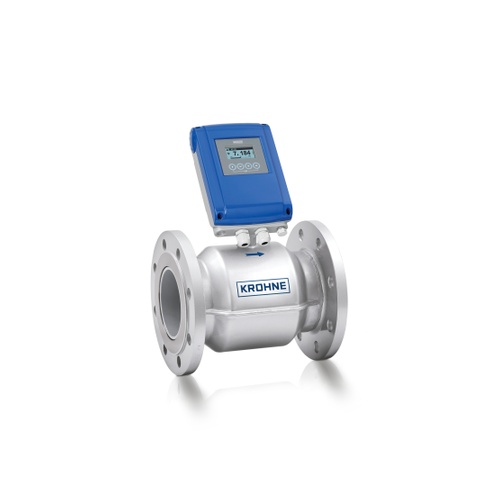

Krohne WATERFLUX 3100 Electromagnetic Flowmeter

The Krohne WATERFLUX 3100 is an Electromagnetic Flowmeter (EMF) for all standard applications that use raw, potable or abstraction water. The WATERFLUX 3100 is ideal for general flow applications where reliable flow measurement with a sufficient yet a not extremely high accuracy is required. Due to the rectangular and reduced cross-section, the WATERFLUX 3100 enables a stable measurement, even at low flow rates. This way, the WATERFLUX 3100 offers a much larger turndown ratio (1000:1) than mechanical flowmeters (e.g. turbine meters) in drinking water distribution networks.

The WATERFLUX 3100 is practically independent of interferences from the installation environment, due to the optimized flow profile. It can be installed virtually anywhere without straight inlet or outlet runs – behind pipe bends, slide valves or a reduction in the pipe. The WATERFLUX 3100 is maintenance-free due to its extremely robust measuring tube with Rislan liner. A full on-site verification of the WATERFLUX 3100 without process interruption can be carried out using the OPTICHECK service tool.
