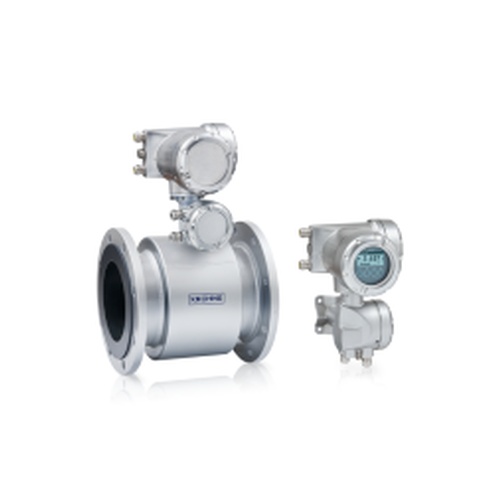

The Krohne TIDALFLEX 2300 is an Electromagnetic Flowmeter (EMF) with a patented, capacitive level measurement for use in partially filled pipes (up to DN1600 / 64”). It is the ideal solution for flow measurement of municipal or industrial wastewater in pressure less transport lines. The TIDALFLUX 2300 is also suitable for measurement of effluent brine from dredging, mining or sea/well water injection applications. Unlike open channel systems (Venturi, V-notches etc.) the inline flowmeter is a closed measuring solution without obstructions and with a much better accuracy at lower total costs of ownership.
The measuring tube of the TIDALFLEX 2300 comes with a polyurethane (PUR) liner for abrasion and chemical resistance. It has a smooth surface that prevents build-up of fat and other deposits which minimises the need for regular cleaning. For direct burial installation or applications in areas that can be partially flooded, the TIDALFLEX 2300 can be ordered as IP68 /NEMA 6P rated version. Due to the presence of flammable hydrogen sulphide (H2S) in many wastewater applications, the TIDALFLEX 2300 also has ATEX / IECEx zone 1 approval. A full on-site verification of the flowmeter without process interruption can be carried out using the OPTICHECK service tool.
Features
Bi-directional flow measurement over a wide dynamic range
Closed measurement solution with patented integrated non-contact level measurement
Designed for effluent and slurries in gravity pipelines / sewers
Chemically and abrasion resistant PUR liner
Accuracy: ±1% of measured value (MV)
Electrodes not in contact with floating deposits
Optional version for direct burial installation and flooded areas (IP68)
Standard factory calibration, no on-site calibration required
Extensive flowmeter and process diagnostics which exceed the NE 107 requirement
Also for use in hazardous areas zone 1
On-site verification of flowmeter with OPTICHECK service tool
