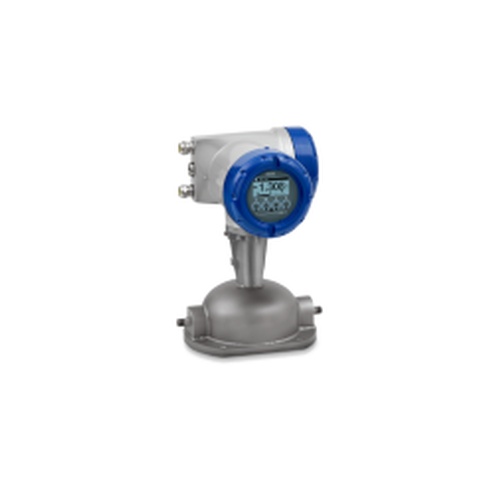

The Krohne OPTIMASS 3400 is a cost-effective Coriolis Mass Flowmeter that is used for accurate flow measurement of liquids and gases in a wide range of demanding low flow and dosing applications (from 0.3 kg/h or 0.01 lb/min upwards). The OPTIMASS 3400 comes with Entrained Gas Management (EGM) for liquid applications, providing reliable readings even in the event of gas entrainment of up to 100%. In this way, the OPTIMASS 3400 enables continuous and uninterrupted measurement of volume flow and mass, density and temperature – even at very difficult process conditions with 2-phase flow.
The Krohne OPTIMASS 3400 features a single Z-tube design which guarantees a low pressure drop across the meter. The OPTIMASS 3400 is available with NPT connections, a range of flange connections as well as standard hygienic connections. Like with all other KROHNE Coriolis mass flowmeters there are no installation restrictions as the OPTIMASS 3400 is immune to crosstalk/line vibrations and can thus be installed in series or in parallel. The OPTIMASS 3400 is approved for use in hazardous areas. It offers various diagnostic functions (NE 107) and digital communication options.
