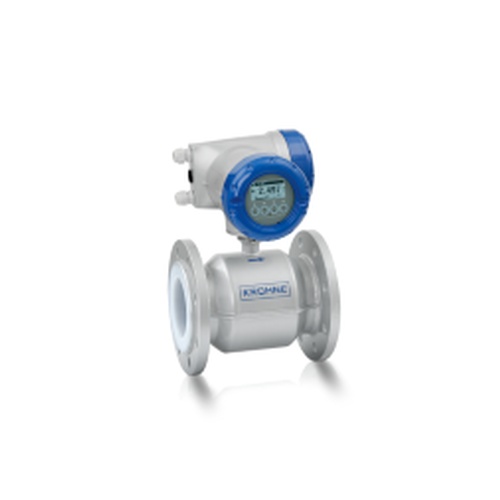

Krohne OPTIFLUX 4300 Electromagnetic Flowmeter

The Krohne OPTIFLUX 4300 is an electromagnetic flowmeter (EMF) that is used for advanced process applications with aggressive liquids or abrasive media. The high-end flowmeter is suitable for critical application that require high accuracy and many diagnostic functions. It enables reliable measurement even under very harsh process conditions with temperatures up to +180°C / +356°F, low conductivities (≥1 µS/cm), high solid contents (up to 70%) and high pressures (up to 1500 bar / 21751 psi). For custody transfer applications, the OPTIFLUX 4300 has a wide range of certifications including OIML R49 and R117 or MI-001 and MI-005. It can also be used for flow measurement in district heating networks requiring MI-004 approval.

The Krohne OPTIFLUX 4300 is available in a wide diameter range, up to DN3000 / 120″. The patented virtual reference option allows for a very cost-saving measuring mode without additional grounding rings – particularly when it comes to large diameters. Installation in measurement chambers that are subject to (constant) flooding is possible with the IP68 / NEMA 6P rated version. The OPTIFLUX 4300 is approved for use in hazardous areas and offers various digital communication options. A full on-site verification of the OPTIFLUX 4300 without process interruption can be carried out using the OPTICHECK service tool.

Features
Bi-directional flow measurement over a wide dynamic range (turn down ratio: 1000:1)
Available with patented virtual reference grounding method: no grounding rings needed
Extensive flowmeter and process diagnostics (incl. NE 107)
For hazardous areas: ATEX, IECEx, NEPSI, FM, CSA, EAC, INMETRO
Standard measurement accuracy: ±0.2% or ±1mm/s of measured value (MV)
For custody transfer: OIML R49, OIML R-117; MI-001, MI-005
PTFE, PFA, ETFE, hard rubber, soft rubber or PU liner: excellent chemical and abrasion resistance
Wide range of electrode materials
Special designs, sizes, inner diameters and liner thicknesses on request
Optional external coatings for offshore or subsoil installation (also acc. to ISO 12944)
Full bore design: No moving parts, no wear, no pressure loss
On-site verification of flowmeter with OPTICHECK service tool
