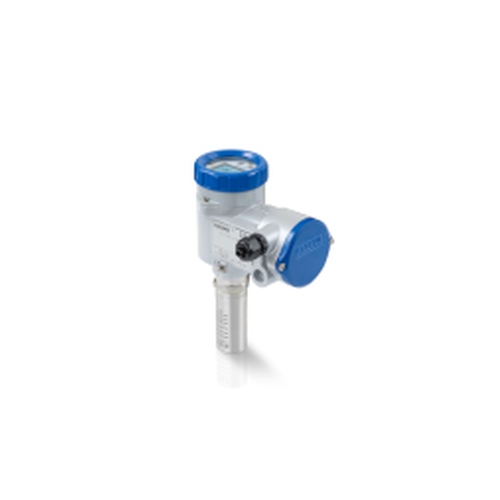

The Krohne DWM 2000 is a 3-wire electromagnetic flow controller, designed to monitor the flow of conductive liquids, pastes and slurries. The range of this insertion-type device is adjustable from 1…8 m/s or 3.3…26.2 ft/s. A welding socket is supplied as standard for welding the DWM 2000 directly onto process pipes (DN50…400 / 2…16″). The long version (DWM 2000 L) is suited for larger pipe diameters or open channels. It comes with either a threaded connection or sliding connection. Both versions are equipped with a safety chain for safe removal of the sensor and with an optional isolation valve. The flow meter is also available with VARIVENT connection for hygienic applications.
As an alternative to insertion tubes, an optional spool piece can be used to install the DWM 2000 without welding operation. For temporarily or permanently immersed measuring points, the meter can be ordered as IP68 rated version. The DWM 2000 has an optional LCD display. Other remote display options are also available. The flow controller is factory calibrated before delivery.
