Tyco 557.202.046 CCU3/C-MXMB MODBUS Interface

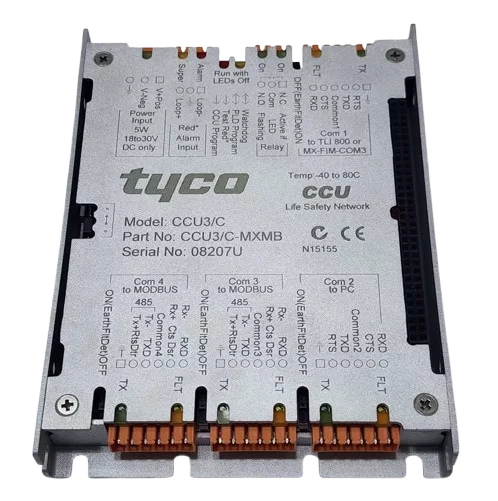

Tyco CCU3/C-MXMB MODBUS Interface Module (557.202.046)

The Tyco CCU3/C-MXMB (557.202.046) provides a MODBUS interface for Tyco MX fire alarm systems, enabling third-party systems and building management platforms to communicate with multiple MX panels across an MXNet network. As a result, engineers can integrate fire alarm information into wider monitoring and control systems while maintaining reliable access to system data.

The module connects to MX panels through a TLI-800 (TPI) interface card using an RS232 connection. Furthermore, it supports RS232, RS485, and RS422 MODBUS communications, providing flexibility for a wide range of integration requirements.

In addition, the CCU3/C-MXMB allows up to eight CCU/IO modules to be connected. Each CCU/IO module provides eight relay outputs and eight supervised inputs, enabling external devices to be monitored and controlled directly through the MODBUS interface. Consequently, engineers can expand system functionality without requiring additional communication gateways.

Key Features

• Provides a MODBUS interface for MX fire alarm systems
• Enables communication with multiple MX panels over MXNet
• Supports RS232, RS485, and RS422 MODBUS connections
• Connects to MX panels via the TLI-800 (TPI) interface
• Supports up to 8 CCU/IO expansion modules
• Each CCU/IO provides 8 relay outputs and 8 supervised inputs
• Monitor inputs and control external devices directly through the MODBUS interface, enabling seamless integration with building management and control systems.
• Simplifies integration with building management and monitoring systems
• Flexible and scalable solution for larger fire detection installations
